Ετυμολογία[επεξεργασία | επεξεργασία κώδικα]

Η ονομασία "φωτεινή" σχετίζεται ετυμολογικά με την λέξη "φως".

Εισαγωγή[επεξεργασία | επεξεργασία κώδικα]

In optics a ray is an idealized model of light, obtained by choosing a line that is perpendicular to the wavefronts of the actual light, and that points in the direction of energy flow.

Rays are used to model the propagation of light through an optical system, by dividing the real light field up into discrete rays that can be computationally propagated through the system by the techniques of ray tracing. This allows even very complex optical systems to be analyzed mathematically or simulated by computer. Ray tracing uses approximate solutions to Maxwell's equations that are valid as long as the light waves propagate through and around objects whose dimensions are much greater than the light's wavelength. Ray theory does not describe phenomena such as interference and diffraction, which require wave theory (involving the relative phase of the rays).

Definition[επεξεργασία | επεξεργασία κώδικα]

A light ray is a line (straight or curved) that is perpendicular to the light's wavefronts; its tangent is collinear with the wave vector. Light rays in homogeneous media are straight. They bend at the interface between two dissimilar media and may be curved in a medium in which the refractive index changes.

Geometric optics describes how rays propagate through an optical system. Objects to be imaged are treated as collections of independent point sources, each producing spherical wavefronts and corresponding outward rays. Rays from each object point can be mathematically propagated to locate the corresponding point on the image.

A slightly more rigorous definition of a light ray follows from Fermat's principle, which states that the path taken between two points by a ray of light is the path that can be traversed in the least time.

Special rays[επεξεργασία | επεξεργασία κώδικα]

There are many special rays that are used in optical modelling to analyze an optical system. These are defined and described below, grouped by the type of system they are used to model.

Interaction with surfaces[επεξεργασία | επεξεργασία κώδικα]

Αρχείο:Ray optics diagram incidence reflection and refraction.svg

Diagram of rays at a surface, where is the angle of incidence, is the angle of reflection, and is the angle of refraction.

  • An incident ray is a ray of light that strikes a surface. The angle between this ray and the perpendicular or normal to the surface is the angle of incidence.
  • The reflected ray corresponding to a given incident ray, is the ray that represents the light reflected by the surface. The angle between the surface normal and the reflected ray is known as the angle of reflection. The Law of Reflection says that for a specular (non-scattering) surface, the angle of reflection always equals the angle of incidence.
  • The refracted ray or transmitted ray corresponding to a given incident ray represents the light that is transmitted through the surface. The angle between this ray and the normal is known as the angle of refraction, and it is given by Snell's Law. Conservation of energy requires that the power in the incident ray must equal the sum of the power in the refracted ray, the power in the reflected ray, and any power absorbed at the surface.
  • If the material is birefringent, the refracted ray may split into ordinary and extraordinary rays, which experience different indexes of refraction when passing through the birefringent material.

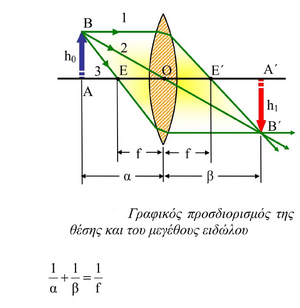

Optical systems[επεξεργασία | επεξεργασία κώδικα]

  • A meridional ray or tangential ray is a ray that is confined to the plane containing the system's optical axis and the object point from which the ray originated.
  • A skew ray is a ray that does not propagate in a plane that contains both the object point and the optical axis. Such rays do not cross the optical axis anywhere, and are not parallel to it.
  • The marginal ray (sometimes known as an a ray or a marginal axial ray) in an optical system is the meridional ray that starts at the point where the object crosses the optical axis, and touches the edge of the aperture stop of the system.This ray is useful, because it crosses the optical axis again at the locations where an image will be formed. The distance of the marginal ray from the optical axis at the locations of the entrance pupil and exit pupil defines the sizes of each pupil (since the pupils are images of the aperture stop).
  • The principal ray or chief ray (sometimes known as the b ray) in an optical system is the meridional ray that starts at the edge of the object, and passes through the center of the aperture stop. This ray crosses the optical axis at the locations of the pupils. As such chief rays are equivalent to the rays in a pinhole camera. The distance between the chief ray and the optical axis at an image location defines the size of the image. The marginal and chief rays together define the Lagrange invariant, which characterizes the throughput or etendue of the optical system. Some authors define a "principal ray" for each object point. The principal ray starting at a point on the edge of the object may then be called the marginal principal ray.
  • A sagittal ray or transverse ray from an off-axis object point is a ray that propagates in the plane that is perpendicular to the meridional plane and contains the principal ray. Sagittal rays intersect the pupil along a line that is perpendicular to the meridional plane for the ray's object point and passes through the optical axis. If the axis direction is defined to be the z axis, and the meridional plane is the y-z plane, sagittal rays intersect the pupil at yp=0. The principal ray is both sagittal and meridional. All other sagittal rays are skew rays.
  • A paraxial ray is a ray that makes a small angle to the optical axis of the system, and lies close to the axis throughout the system. Such rays can be modeled reasonably well by using the paraxial approximation. When discussing ray tracing this definition is often reversed: a "paraxial ray" is then a ray that is modeled using the paraxial approximation, not necessarily a ray that remains close to the axis.
  • A finite ray or real ray is a ray that is traced without making the paraxial approximation.
  • A parabasal ray is a ray that propagates close to some defined "base ray" rather than the optical axis.

Fiber optics[επεξεργασία | επεξεργασία κώδικα]

  • A meridional ray is a ray that passes through the axis of an optical fiber.
  • A skew ray is a ray that travels in a non-planar zig-zag path and never crosses the axis of an optical fiber.
  • A guided ray, bound ray, or trapped ray is a ray in a multi-mode optical fiber, which is confined by the core. For step index fiber, light entering the fiber will be guided if it makes an angle with the fiber axis that is less than the fiber's acceptance angle.
  • A leaky ray or tunneling ray is a ray in an optical fiber that geometric optics predicts would totally reflect at the boundary between the core and the cladding, but which suffers loss due to the curved core boundary.
